High temperature vacuum quenching sintering melting brazing heat treatment furnace, vacuum tungsten furnace, vacuum furnace

High Temperature Vacuum Hardening Sintering Melting Brazing heat treatment Furnace,vacuum tungsten furnace,vacuum furnaceHigh Temperature Vacuum Hardening Sintering Melting Brazing heat treatment Furnace,vacuum tungsten furnace,vacuum furnace HIQ high temperature vacuum tungsten sintering furnaceWidely used in sintered meta

Featured Products

High Temperature Vacuum Hardening Sintering Melting Brazing heat treatment Furnace,vacuum tungsten furnace,vacuum furnace

High Temperature Vacuum Hardening Sintering Melting Brazing heat treatment Furnace,vacuum tungsten furnace,vacuum furnace




HIQ high temperature vacuum tungsten sintering furnace

Widely used in sintered metal powder products, optoelectronic components, hard alloys, magnetic alloys, ceramics, powder materials and other rare and refractory metal materials, but also to satisfy the isostatic pressing sintering of composite ceramic silicon carbide materials.



Equipment technical characteristics;

1. With temperature, pressure, water pressure, vacuum and other interlocking features, with a highly secure protection and prevention functions;

2 with remote control operation, remote fault diagnosis and remote program updates and other functions;

High Temperature Vacuum Hardening Sintering Melting Brazing Heat Treatment Furnace, Vacuum Tungsten Furnace, Vacuum Furnace
High Temperature Vacuum Hardening Sintering Melting Brazing Heat Treatment Furnace, Vacuum Tungsten Furnace, Vacuum Furnace



High Temperature Vacuum Hardening Sintering Melting Brazing heat treatment Furnace,vacuum tungsten furnace,vacuum furnace

Optional configuration:

1. Furnace type selection: horizontal furnace / vertical furnace;

2. Heating options: resistance heating / induction heating;

3. Heating element selection: tungsten / isostatic graphite;

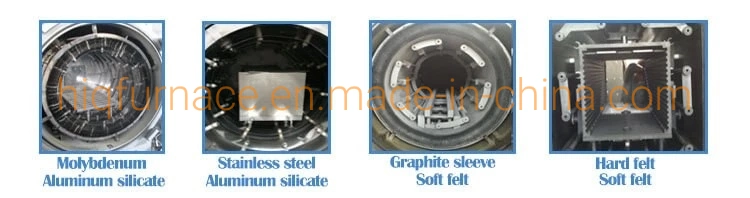

4. Heating chamber insulation options: (tungsten + molybdenum + stainless steel) / (composite carbon felt + soft mat);

5. Temperature selection: 2000 ºC / 2400 ºC;

5 shell: all-carbon steel / stainless steel inner / all stainless steel;

6. Vacuum pump: foreign brand / Chinese brand;

7. Operation panel: touch screen / industrial computer;

8. Temperature controller: SHIMADEN / EUROTHERM;

9. Vacuum degree of choice: 3.0 * 10-1Pa / 2.0 * 10-3Pa;





High Temperature Vacuum Hardening Sintering Melting Brazing Heat Treatment Furnace, Vacuum Tungsten Furnace, Vacuum Furnace

High Temperature Vacuum Hardening Sintering Melting Brazing heat treatment Furnace,vacuum tungsten furnace,vacuum furnace

Model

HIQ-22TVF

 HIQ-22GVF

 HIQ-16MVF

Max. temperature

2400ºC

 2400ºC

 1600ºC

Working temperature

2200ºC

 2200ºC

 1500ºC

Temperature accuracy

+/-1ºC

Heating rate

0-20C/min

 0 -20C/min

 0-30C/min

standard chamber size

the chamber size is customized.

150*150*150mm ; 200*200*200mm; 300*300*300mm ;

400*400*400mm ; 500*500*500mm

Temperature control

Digital 50 segments programmable

Max. vacuum level

7*10ˆ(-3)Pa

Heating element

Tungsten

graphite

 molybdenum

Refractory material

stainless steel + molybdenum sheet+tungsten sheet

Thermal couple

W-Re thermocouple
 infared temperature instrument

W-Re thermocouple
 infared temperature instrument

 B type

Working voltage

AC 110-480V 50-60Hz

Warranty

12 month (exclusive wearing part)



High Temperature Vacuum Hardening Sintering Melting Brazing Heat Treatment Furnace, Vacuum Tungsten Furnace, Vacuum Furnace
High Temperature Vacuum Hardening Sintering Melting Brazing Heat Treatment Furnace, Vacuum Tungsten Furnace, Vacuum Furnace



High Temperature Vacuum Hardening Sintering Melting Brazing heat treatment Furnace,vacuum tungsten furnace,vacuum furnace

High Temperature Vacuum Hardening Sintering Melting Brazing Heat Treatment Furnace, Vacuum Tungsten Furnace, Vacuum Furnace
Our services
High Temperature Vacuum Hardening Sintering Melting Brazing heat treatment Furnace,vacuum tungsten furnace,vacuum furnace

Guarantee:

· One year, We provide permanent technology support.Warranty period appear quality problems free maintenance.After the warranty we need to replace parts we provide at cost price.

· Any technology question, we can provide video instruction, remote video instruction or fly to your country.

· Any problem we will handle in time within 24 hours

Quality

High Temperature Vacuum Hardening Sintering Melting Brazing heat treatment Furnace,vacuum tungsten furnace,vacuum furnace

fessional QC team and every steps of processing we will strictly on quality.

· Our products will be conform international standards and has the CE certificate.

We know how important it is to maintain continuity of production. We take responsibility for the proper functioning of your equipment, leaving you time to run your business.

Servicing equipment during a breakdown is the worst possible scenario. System failure is unexpected, surprising and always at the wrong time.  Alarge is prepared to deal with these situations. In order to raise the service reliability of your equipment, we offer comprehensive support services.

Professional technical services by HENAN HIQ FURNACE CO,.LTD

The engineering team at HIQ has the knowledge and experience to manage fleets of heat treating equipment in a planned and professional manner regardless of the equipment manufacturer. The solutions we offer are universal because they are based on best practices for failure prevention in the best sense of the word. Professional Technical Services provided by HIQ is more than the repair in case of failure. We understand how the equipment works and we increase uptime with the help of automated process maintenance that supports equipment architecture and technology solutions including renovation, modernization, and relocation services.  Alarge carries out preventive inspections and the subsequent preventive measures using advanced tools in the field of metering and reporting.

You no longer have to worry about downtime and additional costs.

HIQ services are available around the clock, 7 days a week.






Looking forward to our good cooperation!
